FAST SERIES FIBER LASER CUTTER

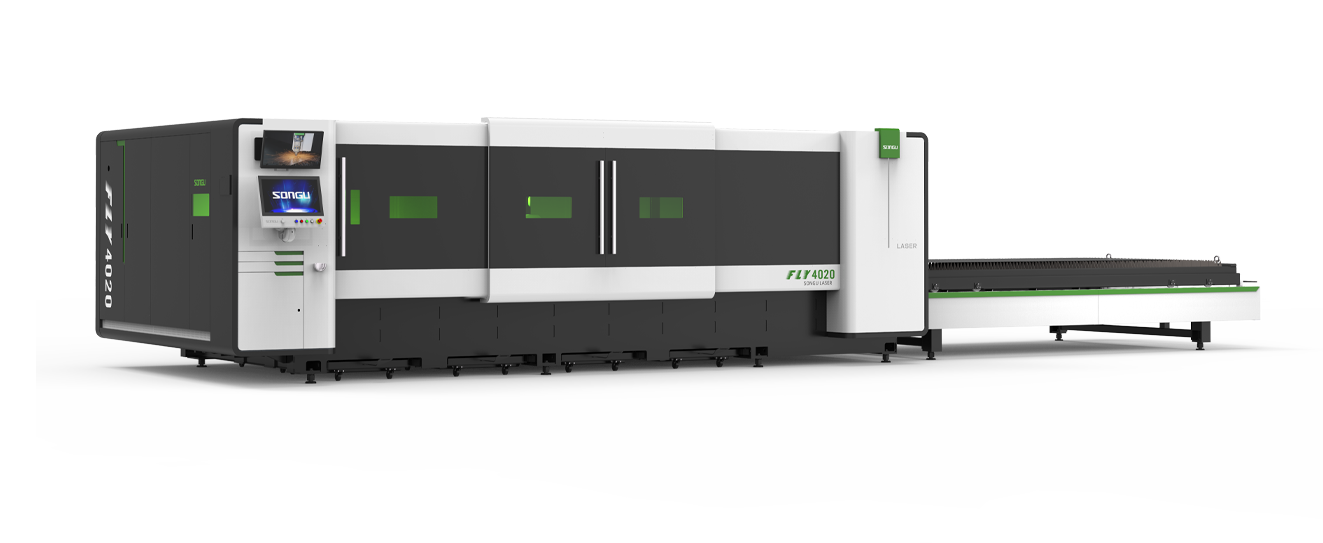

FLY Series Fiber Laser Cutter

FAST Series

Laser power: 3000-20000W/6000-30000W

Songu Laser Technology’s FLY series high-speed fiber laser cutting machine has a high-precision servo motor and transmission mechanism. It adopts an enclosed external protection design with CE protection glass safety windows. The Y-axis skateboard is cast aluminum and equipped with an integrated Z-axis system using a double-layer translation exchange platform. Suitable for 30mm stainless steel and aluminum alloy laser cutting.

Features

Intergrated multi-functions into one, create more value for customer

Advanced servo motor
High-precision servo motor with high accuracy transmission mechanism, large transmission torque, small error good dynamic performance;
Cast aluminum integration
Y-axis sliding plate is made by cast aluminum, with integrated z-axis system: high precision, fast response, stable operation;
Safety-focused protective
Enclosing exterior protective design, CE Standard protective safety window;
Dual-layer tables
Adopts parallel 2-layer shuttle tables, strong structure with high efficiency and less faults;
User-friendly interface
Ergonomic design, intelligent operating terminal, friendly interface, easy to learn;
Remote troubleshooting
Built in remote assistance function to deal with equipment failure, improve the time efficiency of equipment fault trouble-shooting and effectively reduce the cost of after-sales service.

Specfication

Optimization and innovation, make product faster, more stable, more assured

Model	FLY3015	FLY4020	FLY6025
Working width	3000 x 1500 mm	4000 x 2000 mm	6000 x 2500 m
Laser power	3000-20000w	3000-20000w	6000-30000w
Max positioning acceleration	1.7 G	1.7 G	1.4 G
Repeated positioning ac-curacy	±0.03mm/m	±0.03mm/m	±0.03mm/m
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m
Max coordinated speed	140m/min	140m/min	140m/min
Working table exchangetime	15s	20s	30s
Machine weight Weight	7500 kg	9000 kg	13500 kg
Overall dimension	9000x3200x2250mm	11500x3700x2250mm	15500x4400x2250mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Han's Yueming Laser Factory. They are for reference only, and the actual product shall prev

Application

Mainly used for fast 3D cutting of various metal materials such as carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, aluminum zinc plated sheet, brass, copper, etc.

Brass laser cutting
Brass laser cutting
Aluminum alloy laser cutting
Stainless steel cutting

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
