NEAT SERIES OPEN MEDIUM POWER SINGLE TABLE FIBER LASER CUTTER

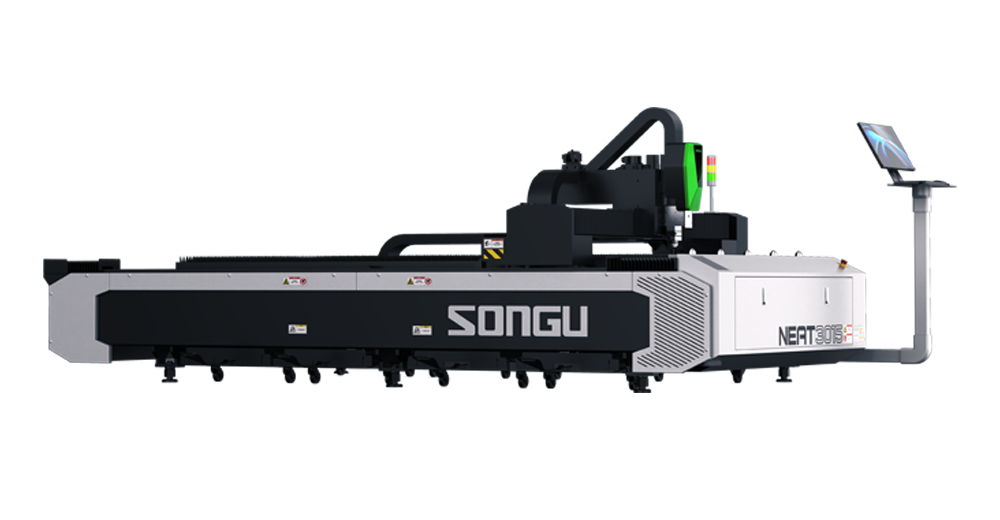

NEAT Series Open Medium Power Single Table Fiber Laser Cutter

NEAT Series

Laser Power:1500-12000W

Songu Laser Technology’s NEAT Series Medium Power single table fiber laser cutter is precision-engineered using a large gantry machining center and is subjected to a large gas-heated trolley-type heat treatment furnace annealing process, highly integrated with professional nesting and layout software and the laser cutting system. Suitable for metal craft laser, carbon steel and metal lettering laser cutting.

Features

Integrated mult-functions into one, create more value for cutomer

Superior precision and stability
The machine bed is precision-machined by a large gantry machining center and annealed in a large gas-heated trolley-type heat treatment furnace to maximally relieve internal stresses from welding, enhancing the equipment’s precision and stability;
Optimized software
The professional nesting and layout software is highly integrated with the advanced laser cutting system, featuring intelligent graphic nesting, automatic edge-finding cutting, and sharp corner smoothing function;
Advanced transmission technology
Rack and pinion transmission system, dual-servo drive, effectively improving the equipment production efficiency;
Comprehensive safety features
The equipment has power outage memory, retreat cutting, automatic fault alarm and emergency stop, automatic fault diagnosis display function;
Auto-focus head
Auto-focus head, Flexible piercing technique, support auto change focal position in piercing, suitable for thick metal plate processing;

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	NEAT3015	NEAT4015	NEAT4020	NEAT6015
Working area	3000 x 1500 mm	4000 x 1500 mm	4000 x 2000 m	6000 x 1500 mm
Laser power	1500/3000w	1500/3000w	3000-12000W	1500-12000W
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m	±0.05mm/m
Repeated positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
Max coordinated speed	127m/min	127m/min	80m/min	100m/min
Max positioning acceleration	0.8G	0.8G	0.8G	1.2G
Allowable Weight	470kg	1400kg	2500kg	2800kg
Weight	1200 kg	1600 kg	4500 kg	5100 kg
Overall dimension	4865x2445x1540mm	6105x2445x1540mm	6865x3575x1925mm	8830x2440x1930mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Mainly used for fast 3D cutting of various metal materials such as carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, aluminum zinc plated sheet, brass, copper, etc.

Metal signage letter cutting
Carbon steel cutting
Metal crafts cutting
Metal signage letter cutting

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
